Delvcam DELV-2LCD7-4K Product Image

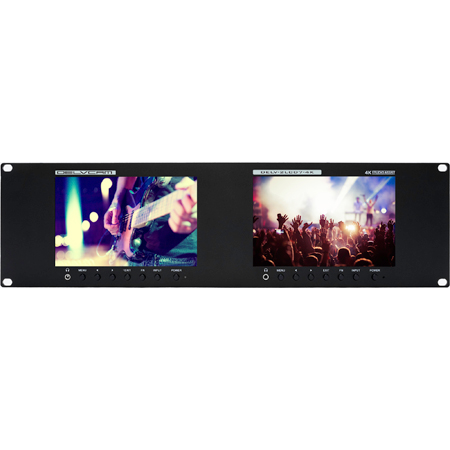

Delvcam DELV-2LCD7-4K Dual 7 Inch 1920x1200 3RU Rackmount SDI Monitor Supports 4k at 60Hz

The Delvcam DELV-2LCD7-4K is a dual 7-inch 1920x1200 3RU rackmount SDI monitor that supports [email protected] input resolutions. Complete with SDI & HDMI 2.0 out, as well as LAN and TALLY outputs users can monitor up to 1080p 60Hz SDI and 2160p 60Hz HDMI videos. With a full HD independent dual display, high contrast, 160° viewing angles, and 400cd/m2 brightness, the DELV-2LCD7-4K is a great option for video wall and broadcast truck applications.


Includes 12v DC Power Supply & Tally Connector (Assembly Required)

Features:

  • 160° Wide Viewing Angles
  • High Resolution: 1920 x 1200
  • High Brightness: 400cd/m2
  • High Contrast: 2000:1
  • Fast Response Time
  • Tally Interface with Indicating Light
  • Durable and Compact Design

Specifications:

  • Inputs: 3G-SDI x 2, HDMI x 2 (Supports 4K @ 60Hz) LAN x 1
  • Outputs: 3G-SDI x 2, HDMI x 2 (Supports 4K @ 60Hz), Headphone x 2
  • Physical Resolution: 1920 x 1200
  • Aspect Ratio: 16:10
  • Brightness: 400cd/m2
  • Contrast: 2000:1
  • Viewing Angle: 160°/160° (H/V)
  • HRD: ST 2084 300/1000/10000/HLG
  • Supported Log Formats: SLOG2/SLOG3, ARRILOG, CLOG, JLOG, VLOG, NLOG
  • LUT Support: 3D-LUT
  • Input Voltage: DC 10-24V
  • Power Consumption: ≤16W
  • Operating Temperature: 32°F - 122°F (0° C - 50°C)
  • Storage Temperature: -4°F - 158°F (-20°C - 70°C)
  • Dimensions (LxWxD): 18.88 x 5.19 x 1.5in (480 x 131.6 x 29.3mm)
  • Weight: 4.925lbs (2.2kg)

Item Includes:

  • 12V 2A DC Power Adapter
  • Tally Connector (Assembly Required)



Downloadable Delvcam Warranty Card
Download the Manual
