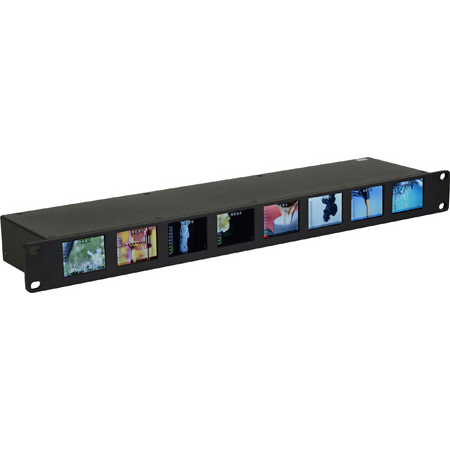

Delvcam DELV-8LCD-SDI Product Image

Delvcam DELV-8LCD-SDI OctoMon 3G-SDI 8-Panel LCD 1RU Rackmount Video Monitor

Monitor up to eight 3G-SDI channels at once with the DELV-8LCD-SDI OctoMon. Each 2-Inch monitor is a LED backlit LCD that supports resolutions up to 1920 x 1080 with a 4:3 aspect format. Monitors have a looping output, on-screen audio metering and timecode functionality making them an ideal choice for rackmounting in a production truck, ENG van or anywhere space savings is paramount. Functions for each monitor in the DELV-8LCD-SDI can be controlled through rear DIP switch activation or via RS422 Ethernet & GUI interface via PC.

Features:

  • 8 2-inch LED backlit LCD monitors
  • Supports 3G-SDI
  • Looping Outputs
  • Embedded Audio Meters
  • Equalization & Reclocking
  • UMD 32 Half-Width Character Function
  • RS422 Input Computer Interface
  • Metal Enclosure

Specifications:

  • Screen: 2" LCD
  • Resolution: 640 x 240, supports up to 1920x1080
  • Brightness: 250cd/m²
  • Aspect Ratio: 4:3
  • Contrast: 300:1
  • Viewing Angles: 80° H / 70° V
  • Input: 1 - RS422 Remote Control
  • Each Screen: Input: 3G-SDI & Output: 3G-SDI
  • Power: 2.5A/15VDC
  • Input Voltage: 12-24VDC
  • Power Consumption: 23W
  • Dimensions: 19 x 4.13 x 1.73 in / 482.5 x 105 x 44mm
  • Weight: 3.43 lb / 1.55 kg

Item Includes:

  • 15VDC Power Adapter, Power Cord

Warranty:

  • 1 Year



Downloadable Delvcam Warranty Card
Ddownload DELV-8LCD-SDI User Manual (pdf)
Download DELV-8LCD-SDI Data Sheet (pdf)
