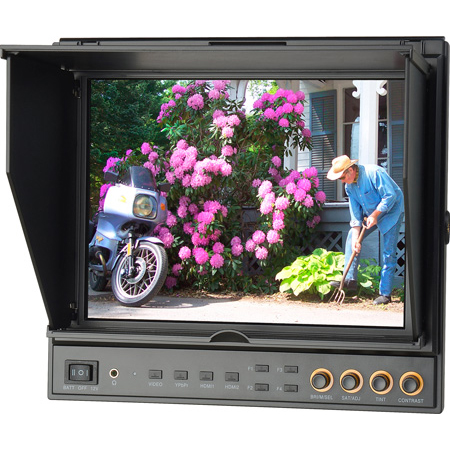

Delvcam DELV-HDSD-10 Product Image

Delvcam 9.7in Dual Input HDMI Monitor With Advanced Function - With Case

The Delvcam DELV-HDSD-10, an LED HD broadcast monitor with dual HDMI inputs, component video, and a built-in sunshade, is optimized for studio and video editing work. The 9.7" LCD is the ideal size for a small broadcast desktop monitor but large enough to pick out the finest details in a shot.

The physical 1024x768 resolution provides clarity at an aspect ratio that works well with 16:9 content and 4:3 content. The 1:1 pixel mapping allows you to maintain the original resolution of your camera's output and avoid any unexpected focus issues in post-production. This monitor offers customizable peaking, false color, histogram, and exposure, auxiliary function buttons.

The DELV-HDSD-10 features an HDMI-output which allows you to duplicate the video content onto a second monitor - no annoying HDMI splitters required. The second monitor can be any size and picture quality will not be affected. This monitor also includes all the AV connections that a broadcast professional needs. Composite and component through BNC connectors and two HDMI inputs cover all the bases for common broadcast applications.

Features:

  • IPS panel 178° wide viewing angles,
  • Dual HDMI inputs,
  • Wide voltage: DC 7-24V,
  • TALLY interface & 5V charging
  • Comply with IP52 standard!

Specifications:

  • DISPLAY
  • Panel 9.7" IPS
  • Physical Resolution 1024x768, support up to 1920x1080
  • Aspect Ratio 4:3
  • Brightness 400cd/m2
  • Contrast 600:1
  • Viewing Angle 178°/178°(H/V)
  • Response Time (ms): HDMI 6.444, AV 1.75, YPBPR 1.486

    INPUT
  • HDMI 2
  • YPbPr 3(BNC)
  • VIDEO 1
  • TALLY 1
  • AUDIO 2(L/R)

  • OUTPUT
  • HDMI 1
  • YPbPr 3(BNC)
  • VIDEO: 1
  • USB 1(5V for charging)

  • AUDIO
  • Speaker 1 (build-in)
  • Ear Phone Slot 1

  • POWER
  • Current 1500mA
  • Input Voltage DC 7-24V (XLR)
  • Battery Plate Compatibility: LPE6, F970, DU21, QM91D
  • V-mount / Anton Bauer mount /
  • Power Consumption =18W

  • ENVIRONMENT
  • Operating Temperature -20C~60C
  • Storage Temperature -30C~70C

  • DIMENSIONS
  • Dimension(LWD) 9.69 x 8.82 x 1.22 inches
  • Weight 2.36 lbs / 3.06 lbs (with cover)

Item Includes:

  • Sunshade
  • 12VDC Power Adapter (XLR)
  • HDMI Cable
  • Talley Connector
  • Battery Plate Bracket
  • Battery Plates: LPE6, F970

Warranty:

  • 1 Year



Downloadable Delvcam Warranty Card
Download DELV-HDSD-10 User Manual
Delvcam DELV-HDSD-10 Data Sheet


Part#:
List:
