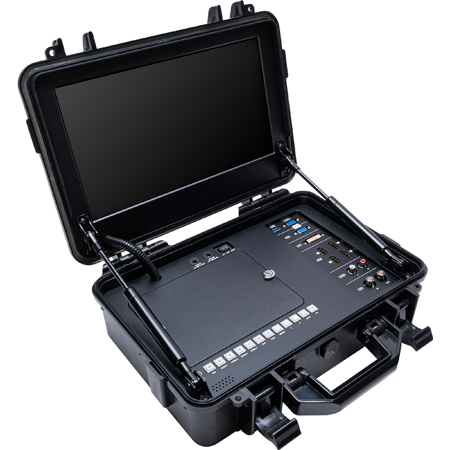

Delvcam DELV-4K125FM Product Image

Delvcam DELV-4K125FM 4K HDMI Portable Broadcast Monitor 12.5 Inch with SDI HDR and 3D LUTS In Field Case

Built with an on-location Director or a DP in mind, buckle up for a feature set you won't find anywhere else at such an affordable price! The Delvcam 4K125FM 12.5" 4K monitor is cleverly mounted in a rugged field case with HDMI, 3G-SDI, VGA and DVI inputs. The unit is both portable and lightweight featuring 3840 x 2160 panel resolution as well as 3D Luts and HDR.

The Delvcam 4K125FM is multi-camera ready housing 4 HDMI inputs. Inside the monitor case are multiple function buttons to select between video inputs and use its histogram, false color, markers, exposure and other monitor operations. Its portability suite includes V-Mount battery powering or DC 10-24V wall wart powering. It even has a Power Output.

The left side of the on-screen meters displays level meters showing audio levels for channels 1 and 2 of the input source. For audio playback, the Delvcam 4K125FM has built in speaker and headphone jack. This monitor has it all at an amazing price point!

Features:

  • Portable 4K HDMI Monitor
  • 12.5" LCD Panel
  • HDR 3D-LUT
  • Audio Speaker with Headphone Jack
  • Inputs:
  • 3G-SDI (Supports up to 1080p 60Hz)
  • (2) HDMI 2.0 (Supports up to 4K 60Hz)
  • (2) HDMI 1.4b (Supports up to 4K 30Hz)
  • DVI, VGA, (2) Audio, Tally, USB
  • Outputs:
  • 3G-SDI Output (Supports up to 1080p 60Hz)

Specifications:

  • Resolution: 3840x2160
  • Aspect Ratio: 16:9
  • Brightness: 400 cd/m2
  • Contrast: 1500:01:00
  • Viewing Angle: 170° / 170° (H/V)
  • Input Voltage: DC 10-24V
  • Power Consumption: ≤ 23W
  • Battery Plate: V-Mount
  • Power Output: DC 8V
  • Operating Temperature: 32°F - 122°F (0°C - 50°C)
  • Storage Temperature: 50°F - 140°F (10°C - 60°C)
  • Dimensions (LWD): 14 x 10.75 x 4.6"
  • Weight: 9.63 lbs

Item Includes:

  • V-Mount Battery Plate
  • Tally Connector
  • USB with Manuals & 3D-LUT Program
  • Sunshade
  • AC Power Supply 12V - 3A

Warranty:

  • 1 Year



Downloadable Delvcam Warranty Card
Download the Datasheet
Download the Manual
